American_Pneumatic_Tools_M653_Chipping_Hammer_Close_up_View

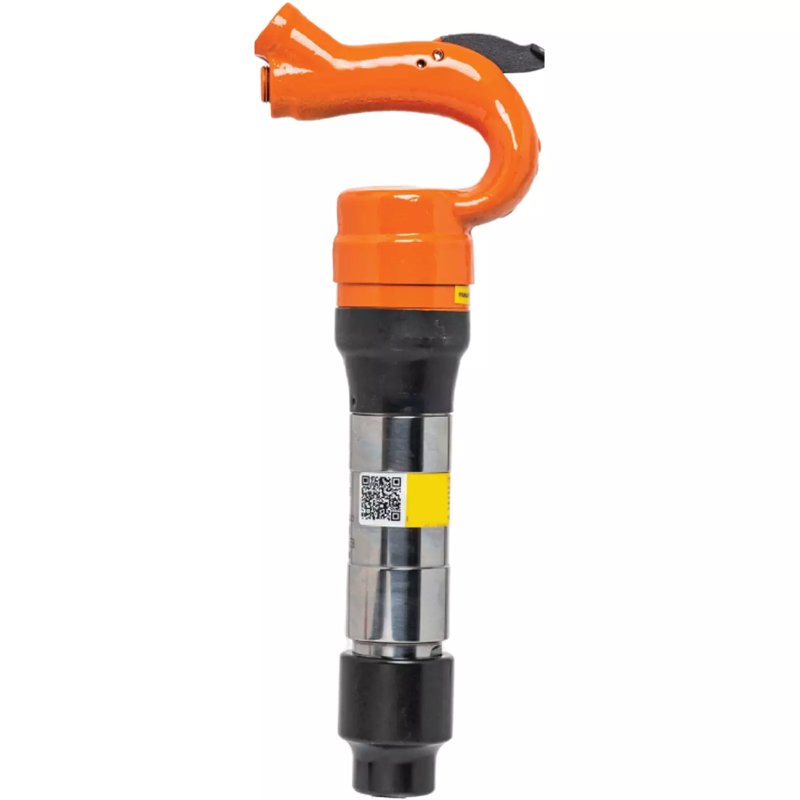

American Pneumatic Tools M653 Chipping Hammer

by American Pneumatic Tools
$966.05

Notify me when back in stock

Ready for precision work and tough cleanup, the APT M653 chipping hammer is built to handle scaling, chiseling, form stripping, and light concrete demolition. It’s also well-suited for removing concrete build-up inside mixers.

Featuring a 3" stroke, PG-handle and outside trigger, it delivers solid control and reliable performance across a variety of tasks.



SPECIFICATIONS

New Part # 1280582865 1280582869
Old Part # 5300 5301
Nose Bushing .680 Round .580 Hex
Bore Diameter 1 ⅛”
Stroke 3"
Blows per Minute 1,650
CFM @ 90 PSI 33-35
Weight 14 lbs
Length 15 ¼”
Air Inlet Size ⅞-24 Female



Standard features

  • 3 different models (M43/44, M263/264, & M652/653/654)
  • New drop-forged steel D or PG-style handle and collar
  • Deep case hardened alloy steel cylinder
  • Adjustable exhaust deflector
  • Interchangeable bushing styles
  • Available in 3", 4", and 2" (only M650 models) strokes



Air Pressure

The recommended air requirement for the operation of APT tools is 90 psi (6.2 bar). Lower air pressure will decrease power, too high a pressure will increase unwanted stresses in the tool. For proper CFM ratings, please refer to the specification chart above.



Hose Size

APT recommends the use of at least 1⁄2” inside diameter or larger hoses to assure sufficient air flow to the tool. For portable compressor hose and longer lengths, 3⁄4 “ hose is recommended. Keep the overall length of the hose to a minimum to prevent pressure loss at the tool



Connecting Hoses

Hoses should be rated for a minimum of 250 psi (17.2 bar). Before connecting the air hose to the tool, check the tool inlet connector to be sure it is clean and free of dirt or debris. Keeping dirt and debris from entering the tool will assure long and satisfactory operation.

Description

Ready for precision work and tough cleanup, the APT M653 chipping hammer is built to handle scaling, chiseling, form stripping, and light concrete demolition. It’s also well-suited for removing concrete build-up inside mixers.

Featuring a 3" stroke, PG-handle and outside trigger, it delivers solid control and reliable performance across a variety of tasks.



SPECIFICATIONS

New Part # 1280582865 1280582869
Old Part # 5300 5301
Nose Bushing .680 Round .580 Hex
Bore Diameter 1 ⅛”
Stroke 3"
Blows per Minute 1,650
CFM @ 90 PSI 33-35
Weight 14 lbs
Length 15 ¼”
Air Inlet Size ⅞-24 Female



Standard features

  • 3 different models (M43/44, M263/264, & M652/653/654)
  • New drop-forged steel D or PG-style handle and collar
  • Deep case hardened alloy steel cylinder
  • Adjustable exhaust deflector
  • Interchangeable bushing styles
  • Available in 3", 4", and 2" (only M650 models) strokes



Air Pressure

The recommended air requirement for the operation of APT tools is 90 psi (6.2 bar). Lower air pressure will decrease power, too high a pressure will increase unwanted stresses in the tool. For proper CFM ratings, please refer to the specification chart above.



Hose Size

APT recommends the use of at least 1⁄2” inside diameter or larger hoses to assure sufficient air flow to the tool. For portable compressor hose and longer lengths, 3⁄4 “ hose is recommended. Keep the overall length of the hose to a minimum to prevent pressure loss at the tool



Connecting Hoses

Hoses should be rated for a minimum of 250 psi (17.2 bar). Before connecting the air hose to the tool, check the tool inlet connector to be sure it is clean and free of dirt or debris. Keeping dirt and debris from entering the tool will assure long and satisfactory operation.
