The Most Versatile Pump and Spray Machine on the Market

The Mighty Small 50 EVO & PLUS models are an easily portable multi-purpose pump and spray machine. You may configure the pump with many different accessories depending on the required application. Whether it is pumping grout into forms, on a bridge deck repair project, spraying fireproofing on a high-rise.

TECHNICAL SPECIFICATIONS

Model # EVO	1106344
Model # Plus	1106345
Power - Evo	120 V
Power - Plus	240 V
Max. Aggregate Size	1/4 in
Hopper Capacity	1.74 cu ft
Loading Height	25.5 in
Dimensions w/l/h	20.5 x 44 in x 25.5 in
Weight	90 lbs (EVO) 100 lbs (Plus)

Mighty Small 50 EVO & PLUS

• Rotor and stator D8 1.5
• Stainless steel hopper
• Inverter driven control panel
• Electric remote control cable
• Pressure gauge for material pressure
• Accessory toolbox

Mighty Small 50 Airless Spray Kit

• Stator 4N13S - Part # 1107220• Rotor 4N13S - Part # 1107221
• AG19 Gun - Part # 1107643
• Nozzle kit (Nozzles; 617 Part # 1107644, 619 Part # 1107645, 531 Part # 1107646, and 335 Part # 1107649)
• Filter kit (10 pcs kit green airless filter - Part # 1107650) and 10 pcs kit white airless filter - Part # 1107651)
• Safety sensor, pressure gauge and cable
• 66’ Airless hose (1/2”) - Part # 1107654
• Gun cleaning kit - Part # 1107658

Optional equipment

• Dual diaphragm compressor - Part # 1107546
• Mortar, stucco and fireproofing gun kit - Part # 1107005
• Paint and fine coatings gun kit - Part # 1107010
• Grout injection kit - Part # 1107006
• Tuck pointing gunkit - Part # 1107504
• 50’ x 25mm material hose - Part # 1107525
• 33’ x 25mm material hose - Part # 1107526
• 16’ x 25mm material hose - Part # 1107527
• 5’ overhead wand - Part #1107549
• Vibrating hopper for tuckpointing - Part #1107015
• Vibrating screen for bulk sand mixes - Part # 1107548
• Pipe hook for block, form and door jamb filling - Part #1107570
• D5 - 2.5 Rotor - Part # 1107085
• D5 - 2.5 Stator - Part # 1107084
• Small 50 Plus - Airless spray kit - Part # 1107669

Progressive Cavity Pumps

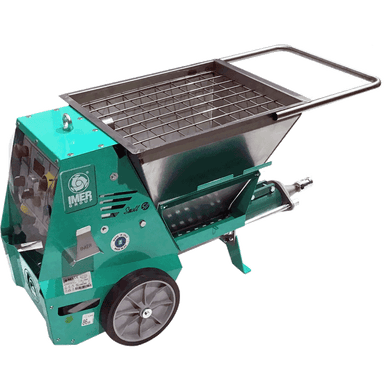

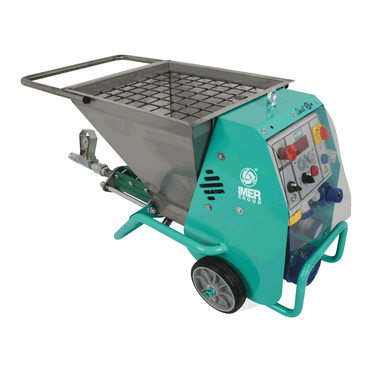

IMER USA Mighty Small 50 Progressive Cavity Pump
