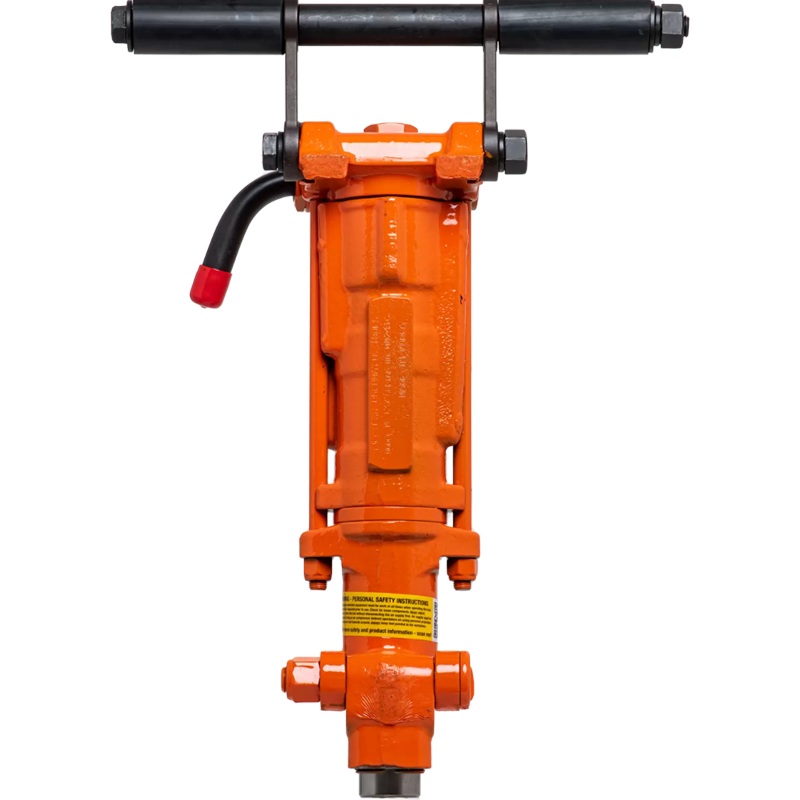

American Pneumatic Tools M137 Rock Drill

American Pneumatic Tools M137 Rock Drill

by American Pneumatic Tools
$3,154.85

Notify me when back in stock

Take on tough drilling jobs with the APT M137, a dependable midsize rock drill built for general construction, utility work, and plant maintenance. It’s designed to power through granite and hard-faced rock, handle quarry drilling, and create secondary holes for blasting.

It also works seamlessly with dowel hole drilling machines, making it a versatile choice for demanding applications.

SPECIFICATIONS

New Part # 1280583318 1280583319 1280583320 1280583321 1280583322 1280028976
Old Part # 5223 5224 5225 5226 5227 5228
Type Dry Wet Dry Wet Dry Wet
Type ⅞” x 3 ¼" ⅞” x 4 ¼” 1 x 4 ¼”
Bore Diameter 2 ⅜”
Stroke 2 ⅝”
Blows per Minute 2,300
CFM @ 90 PSI 85-90
Weight 38 lbs
Length 19 ¾”
Air Inlet Size ½” Male NPT



Standard Features

  • Multiple drilling speeds
  • Lightweight, aluminum cast, D or T-style handle
  • Built-in automatic oiler
  •  Available in wet or dry models


Air Pressure

The recommended air requirement for the operation of APT tools is 90 psi (6.2 bar). Lower air pressure will decrease power, too high a pressure will increase unwanted stresses in the tool. For proper CFM ratings, please refer to the specification charts above.



Hose Size

APT recommends the use of at least 1⁄2” inside diameter or larger hoses to assure sufficient air flow to the tool. For portable compressor hose and longer lengths, 3⁄4 “ hose is recommended. Keep the overall length of the hose to a minimum to prevent pressure loss at the tool.



Connecting Hoses

Hoses should be rated for a minimum of 250 psi (17.2 bar). Before connecting the air hose to the tool, check the tool inlet connector to be sure it is clean and free of dirt or debris. Keeping dirt and debris from entering the tool will assure long and satisfactory operation.

Description

Take on tough drilling jobs with the APT M137, a dependable midsize rock drill built for general construction, utility work, and plant maintenance. It’s designed to power through granite and hard-faced rock, handle quarry drilling, and create secondary holes for blasting.

It also works seamlessly with dowel hole drilling machines, making it a versatile choice for demanding applications.

SPECIFICATIONS

New Part # 1280583318 1280583319 1280583320 1280583321 1280583322 1280028976
Old Part # 5223 5224 5225 5226 5227 5228
Type Dry Wet Dry Wet Dry Wet
Type ⅞” x 3 ¼" ⅞” x 4 ¼” 1 x 4 ¼”
Bore Diameter 2 ⅜”
Stroke 2 ⅝”
Blows per Minute 2,300
CFM @ 90 PSI 85-90
Weight 38 lbs
Length 19 ¾”
Air Inlet Size ½” Male NPT



Standard Features

  • Multiple drilling speeds
  • Lightweight, aluminum cast, D or T-style handle
  • Built-in automatic oiler
  •  Available in wet or dry models


Air Pressure

The recommended air requirement for the operation of APT tools is 90 psi (6.2 bar). Lower air pressure will decrease power, too high a pressure will increase unwanted stresses in the tool. For proper CFM ratings, please refer to the specification charts above.



Hose Size

APT recommends the use of at least 1⁄2” inside diameter or larger hoses to assure sufficient air flow to the tool. For portable compressor hose and longer lengths, 3⁄4 “ hose is recommended. Keep the overall length of the hose to a minimum to prevent pressure loss at the tool.



Connecting Hoses

Hoses should be rated for a minimum of 250 psi (17.2 bar). Before connecting the air hose to the tool, check the tool inlet connector to be sure it is clean and free of dirt or debris. Keeping dirt and debris from entering the tool will assure long and satisfactory operation.
