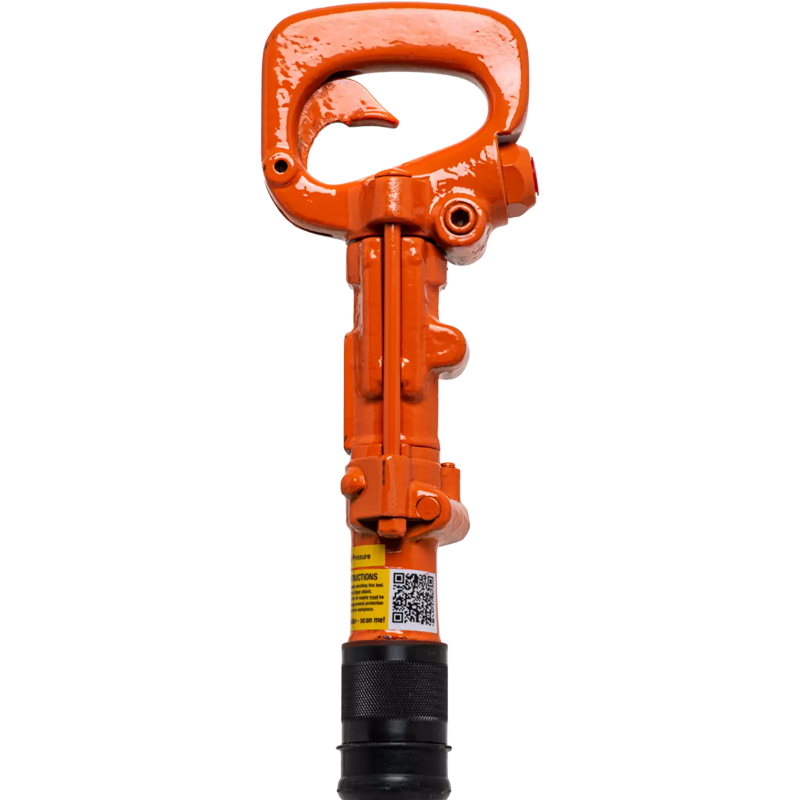

American_Pneumatic_Tools_M109_Rock_Drill_Close_up_View

American Pneumatic Tools M109 Rock Drill

by American Pneumatic Tools
$1,448.50

Notify me when back in stock

Lightweight and easy to handle, the APT M109 rock drill is perfect for drilling anchor bolt holes and small dowel holes.

A built-in stop rotation feature lets the user easily switch from drilling to percussion-only mode, providing added flexibility for different tasks on the job.



SPECIFICATIONS

New Part # 1280583315
Old Part # 17643
Chuck Size ¾” Round x 3 ¾”
Bore Diameter 1 ¼”
Stroke 1
Blows per Minute 3,400
CFM @ 90 PSI 19-21
Weight 9 lbs
Length 15"
Air Inlet Size ⅜” NPT Female


    Standard Features

    • Multiple drilling speeds
    • Lightweight, aluminum cast, D or T-style handle
    • Built-in automatic oiler
    •  Available in wet or dry models



    Air Pressure

    The recommended air requirement for the operation of APT tools is 90 psi (6.2 bar). Lower air pressure will decrease power, too high a pressure will increase unwanted stresses in the tool. For proper CFM ratings, please refer to the specification charts above.



    Hose Size

    APT recommends the use of at least 1⁄2” inside diameter or larger hoses to assure sufficient air flow to the tool. For portable compressor hose and longer lengths, 3⁄4 “ hose is recommended. Keep the overall length of the hose to a minimum to prevent pressure loss at the tool.



    Connecting Hoses

    Hoses should be rated for a minimum of 250 psi (17.2 bar). Before connecting the air hose to the tool, check the tool inlet connector to be sure it is clean and free of dirt or debris. Keeping dirt and debris from entering the tool will assure long and satisfactory operation.

    Description

    Lightweight and easy to handle, the APT M109 rock drill is perfect for drilling anchor bolt holes and small dowel holes.

    A built-in stop rotation feature lets the user easily switch from drilling to percussion-only mode, providing added flexibility for different tasks on the job.



    SPECIFICATIONS

    New Part # 1280583315
    Old Part # 17643
    Chuck Size ¾” Round x 3 ¾”
    Bore Diameter 1 ¼”
    Stroke 1
    Blows per Minute 3,400
    CFM @ 90 PSI 19-21
    Weight 9 lbs
    Length 15"
    Air Inlet Size ⅜” NPT Female


      Standard Features

      • Multiple drilling speeds
      • Lightweight, aluminum cast, D or T-style handle
      • Built-in automatic oiler
      •  Available in wet or dry models



      Air Pressure

      The recommended air requirement for the operation of APT tools is 90 psi (6.2 bar). Lower air pressure will decrease power, too high a pressure will increase unwanted stresses in the tool. For proper CFM ratings, please refer to the specification charts above.



      Hose Size

      APT recommends the use of at least 1⁄2” inside diameter or larger hoses to assure sufficient air flow to the tool. For portable compressor hose and longer lengths, 3⁄4 “ hose is recommended. Keep the overall length of the hose to a minimum to prevent pressure loss at the tool.



      Connecting Hoses

      Hoses should be rated for a minimum of 250 psi (17.2 bar). Before connecting the air hose to the tool, check the tool inlet connector to be sure it is clean and free of dirt or debris. Keeping dirt and debris from entering the tool will assure long and satisfactory operation.
