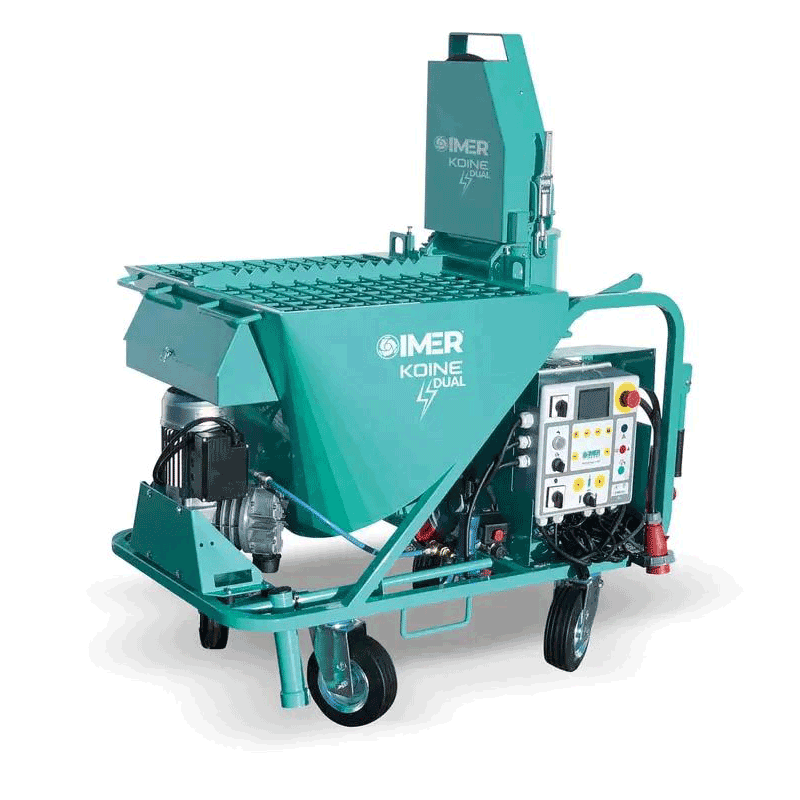

IMER USA Koine Dual Mixing Pump

by IMER USA
$21,999.00

Notify me when back in stock

Continuous Operation Means Efficient and Effective Production

The Koine Dual continuous pumps make batching, mixing and pumping easy. Set the water level based on the material requirements and let the pump do the work. Break bags directly into the hopper as the feeding wheel delivers the dry material into the mixing chamber where metered water is introduced. A high shear mixing paddle spins up to 400 RPM on the Koine to whip the material up and discharges into the stator where the rotor creates the pressure to push the material into the hose. A rotor driven impeller ensures that the material is thoroughly mixed before it is placed. The Dual gets it’s name from having the ability to run on single phase or 3 phase. No more need to decide which one is right for you.



TECHNICAL SPECIFICATIONS

Model #
1106312
Power Supply: 3Ø / 1Ø
208 V / 240 V
Total Machine Power
9 HP
Drive Motor
7.5 HP
Feeding Wheel Motor
1 HP
Water Pump
1 HP
Material Flow Rate
Up to 140 cu ft / hr
Bags / hr (SLU)
Up to 300
Loading Height
36 in
Dimensions w/l/h
29 in x 47 in x 62 in
Weight
574 lbs



Standard Equipment

• Dust grate with vacuum port
• R8 Stator and rotor with tab
• Turbo mixer kit
• Material delivery pressure gauge
• Gear driven feed impeller
• Self-priming stainless steel water pump
• 35mm hose clean-out adapter
• Water system with flow meter and no freeze discharge valve
• 130’ electric cord
• 130’ water hose Ø 19 mm (3/4”)
• 33’ material hose Ø 35 mm (1-3/8”) with quick connects
• Integrated tool storage box
• Clean up kit (scraper and sponge)



Optional equipment

• Dual diaphragm compressor, 3 phase - Part # 1107680
• Koine gun kit - Part # 1107005
• 5’ overhead wand - Part #1107549
• 33’ x 35mm hose - Part # 1107528
• 35mm - 25mm Reducer - Part # 1107565
• R7 - 1.5 rotor with tab - Part # 1107625
• R7 - 1.5 stator - Part #1107624
•  R7 - 2.5 rotor with tab - Part # 1107623
• R7 - 2.5 stator - Part #1107622
• Mixing paddle for light materials - Part #1107541
• Spray gun 35mm female - Part # 1107641



Description

Continuous Operation Means Efficient and Effective Production

The Koine Dual continuous pumps make batching, mixing and pumping easy. Set the water level based on the material requirements and let the pump do the work. Break bags directly into the hopper as the feeding wheel delivers the dry material into the mixing chamber where metered water is introduced. A high shear mixing paddle spins up to 400 RPM on the Koine to whip the material up and discharges into the stator where the rotor creates the pressure to push the material into the hose. A rotor driven impeller ensures that the material is thoroughly mixed before it is placed. The Dual gets it’s name from having the ability to run on single phase or 3 phase. No more need to decide which one is right for you.



TECHNICAL SPECIFICATIONS

Model # 1106312
Power Supply: 3Ø / 1Ø 208 V / 240 V
Total Machine Power 9 HP
Drive Motor 7.5 HP
Feeding Wheel Motor 1 HP
Water Pump 1 HP
Material Flow Rate Up to 140 cu ft / hr
Bags / hr (SLU) Up to 300
Loading Height 36 in
Dimensions w/l/h 29 in x 47 in x 62 in
Weight 574 lbs



Standard Equipment

• Dust grate with vacuum port
• R8 Stator and rotor with tab
• Turbo mixer kit
• Material delivery pressure gauge
• Gear driven feed impeller
• Self-priming stainless steel water pump
• 35mm hose clean-out adapter
• Water system with flow meter and no freeze discharge valve
• 130’ electric cord
• 130’ water hose Ø 19 mm (3/4”)
• 33’ material hose Ø 35 mm (1-3/8”) with quick connects
• Integrated tool storage box
• Clean up kit (scraper and sponge)



Optional equipment

• Dual diaphragm compressor, 3 phase - Part # 1107680
• Koine gun kit - Part # 1107005
• 5’ overhead wand - Part #1107549
• 33’ x 35mm hose - Part # 1107528
• 35mm - 25mm Reducer - Part # 1107565
• R7 - 1.5 rotor with tab - Part # 1107625
• R7 - 1.5 stator - Part #1107624
•  R7 - 2.5 rotor with tab - Part # 1107623
• R7 - 2.5 stator - Part #1107622
• Mixing paddle for light materials - Part #1107541
• Spray gun 35mm female - Part # 1107641
 
