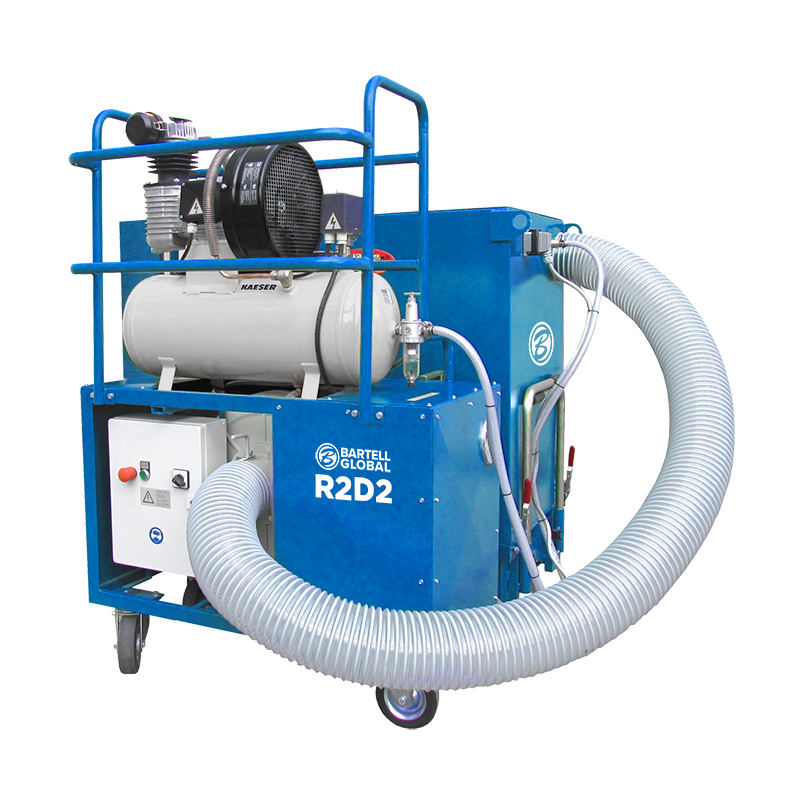

Bartell Global R2D2 Dust Extractor

$25,090.00

Notify me when back in stock

Features

  • Built in two units for easy transportation
  • Filters are automatically cleaned during operation

Product Description

The cartridge filters are automatically cleaned during operation by compressed air. The R2D2 is built in two units for easy transportation. The power unit includes all the electronics and components such as ventilator, motor and compressor. The filter unit includes the filter cartridges and the dust container(s). On site it is easy to connect the two units to form one machine.



POWER UNIT
Voltage 480V
Frequency 60Hz
Phase 3
Current Consumption 12.2A
Motor Rating 5.5kW
Motor Nominal Current 10.2A
Motor RPM 2935
Weight 483 lbs (220kg)
Height 61.5" (156cm)
Length 40.2" (102cm)
Width 20.5" (52cm)
Air Flow 1342 ft3/min (38m3/min)
Depression 10150 Pa
Ventilator RPM 6350
FILTER UNIT - CONTAINER
Weight 379.2 lbs (172kg)
Height 56" (141cm)
Length 43" (108cm)
Width 32" (80cm)
Filter Area 10 m2 (5m x 2m)
Filter Cartridges 5
Capacity Dust Bind 160 liters (alternative 90 liters)
Dust Port Diameter 50, 70, 125 mm
Filter Cleaning Automatic, Air Pressure
COMPRESSOR
Motor Rating 1.7kW
Motor Nominal Current 2A
Motor RPM 1500
Description

Features

  • Built in two units for easy transportation
  • Filters are automatically cleaned during operation

Product Description

The cartridge filters are automatically cleaned during operation by compressed air. The R2D2 is built in two units for easy transportation. The power unit includes all the electronics and components such as ventilator, motor and compressor. The filter unit includes the filter cartridges and the dust container(s). On site it is easy to connect the two units to form one machine.



POWER UNIT
Voltage 480V
Frequency 60Hz
Phase 3
Current Consumption 12.2A
Motor Rating 5.5kW
Motor Nominal Current 10.2A
Motor RPM 2935
Weight 483 lbs (220kg)
Height 61.5" (156cm)
Length 40.2" (102cm)
Width 20.5" (52cm)
Air Flow 1342 ft3/min (38m3/min)
Depression 10150 Pa
Ventilator RPM 6350
FILTER UNIT - CONTAINER
Weight 379.2 lbs (172kg)
Height 56" (141cm)
Length 43" (108cm)
Width 32" (80cm)
Filter Area 10 m2 (5m x 2m)
Filter Cartridges 5
Capacity Dust Bind 160 liters (alternative 90 liters)
Dust Port Diameter 50, 70, 125 mm
Filter Cleaning Automatic, Air Pressure
COMPRESSOR
Motor Rating 1.7kW
Motor Nominal Current 2A
Motor RPM 1500
